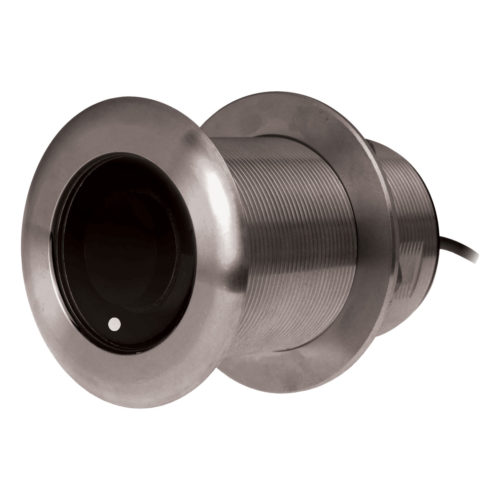

Airmar’s low profile Chirp-ready transducer models are the perfect addition to your Humminbird Helix or Solix. The stainless steel housing is installed almost flush to the hull giving great performance at speed. The transducer suits fibreglass & timber boats, and also comes with a sleeve for Aluminium boat installation. The SS75 transducers include a cable for Helix or Solix and can be directly plugged into your unit. If you have a Side Imaging or Down Imaging unit purchase a splitter cable for seamless operation between your SI transducer and Airmar thru hull. SS75 transducers are available in three Tilted Element™ models. Choose the model to suit your hull deadrise and installation location. When the transducer is installed the tilt corrects for the hull deadrise and orients the ceramic element horizontally to assure maximum echo returns to the transducer.

• Fixed 20° tilted version for 16° to 24° hull deadrise
• Fixed 12° tilted version for 8° to 15° hull deadrise
• Fixed 0° tilted version for 0° to 7° hull deadrise

Specifications
• Weight 1.4 kg (3 lb)
• Hull Deadrise Up to 24°
• Acoustic Window Urethane
• Hole Size 70 mm (2-13/16”)
• One internal broadband ceramic assembly

BLA CodeDescriptionMax. Depth
Capability
103452SS75 High Thru Hull 600W 0 DEG TS Helix214m
103453SS75 Med Thru Hull 600W 0 DEG TS Helix274m
103454SS75 High Thru Hull 600W 12 DEG TS Helix214m
103455SS75 Med Thru Hull 600W 12 DEG TS Helix274m
103456SS75 High Thru Hull 600W 20 DEG TS Helix214m
103457SS75 Med Thru Hull 600W 20 DEG TS Helix274m
