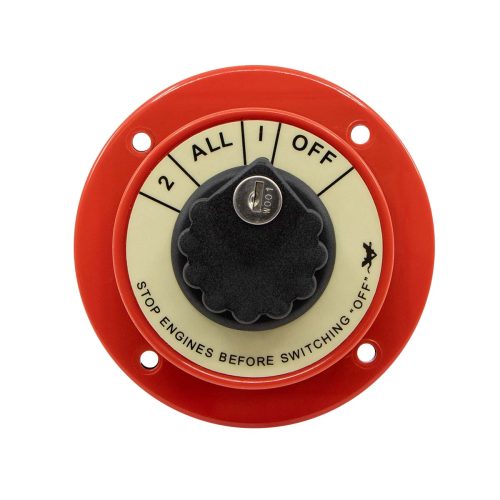

Battery selector switch with key lock providing added security to engine starting. Four position options enable isolation of one battery or battery bank from the other. Also provides the ability to link both batteries in parallel. The unit can be surface or partially recess mounted.

Specifications
• Voltage 6-32V DC
• Continuous Rating 250 amps DC
• Intermittent Rating 360 amps DC

BLA CodeBase Dia. mmCut Out Dia. mmOverall Depth mmMount Screws mmTerminal Stud mm
11429613496705 r/h8
