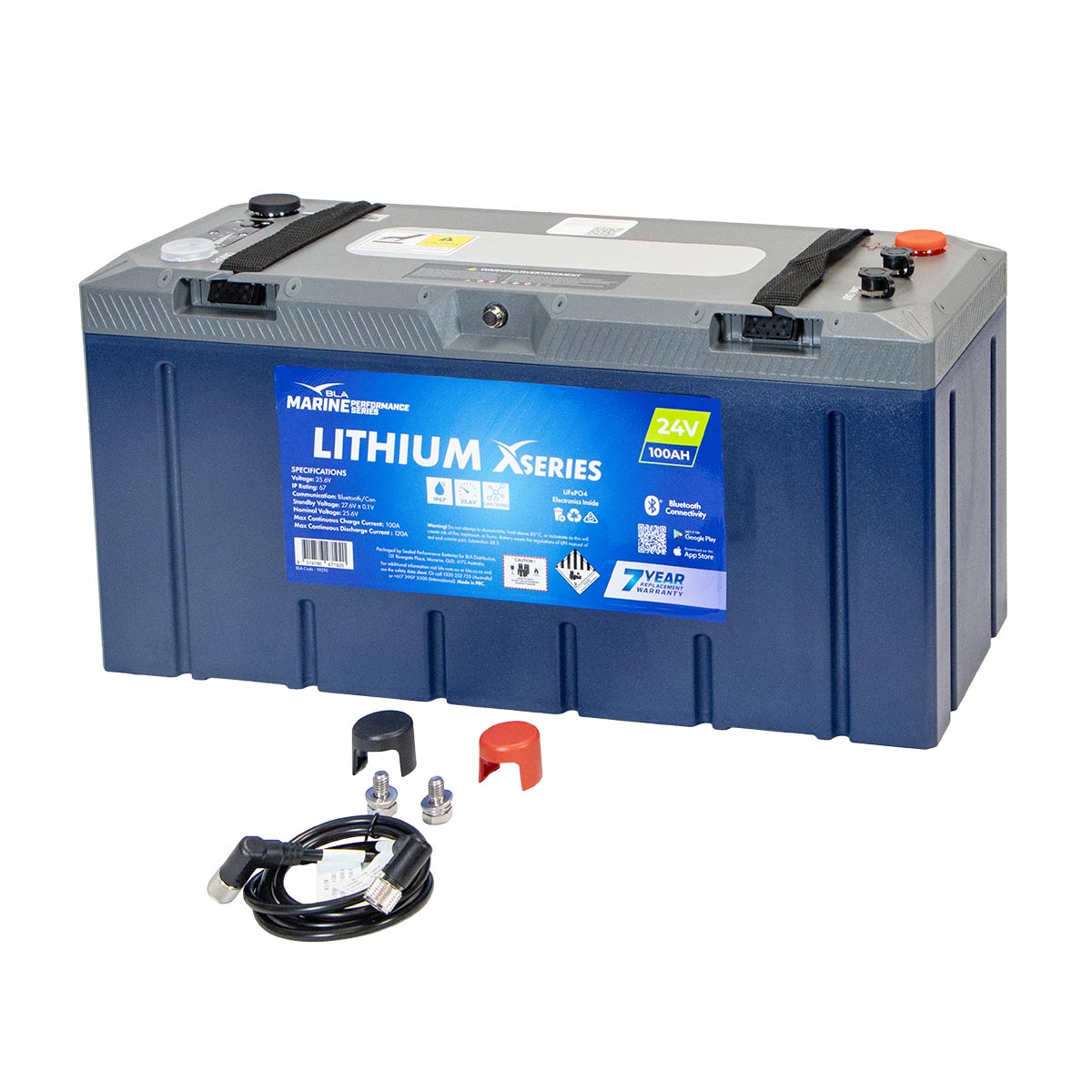

BLA PERFORMACE SERIES LITHIUM BATTERY BT XSERIES
Price range: $2,489.00 through $3,899.00
Brand:
The BLA Marine Performance X Series Lithium Battery 24V & 36V range has been specifically designed for replacement of similar size Lead acid batteries. The X Series range uses all the benefits of Lithium Iron Phosphate (LiFePO4) technology and pushes the limits in communication possibilities, power, safety and security with its advanced battery technology.
Features:
• Large number of cycles >3000 (100% DoD)
Up to 10 times cycle life of SLA lowering your total cost of ownership.
• Safe and stable chemistry & Integrated BMS
The use of LiFePO4 along with the integrated BMS ensures protection against over charge / discharge, temperature and short circuit providing the highest degree of safety.
• More communication possibilities with Bluetooth and open CAN bus, this makes connecting devices even easier.
• High energy density (less than half of the weight of SLA)
Lowering total weight of application.
• Sealed from the Australian / New Zealand elements
IP67 rated.
• More power and customization with the ability to connect 4 in series, or 16 in parallel, or upto 4 in series and 4 in parallel.
Specifications Table:
| BLA CODE | 111210 | 111216 |
|---|---|---|
| Description | BLA PERFORMANCE SERIES LITHIUM BATTERY 24V 100AMP BT XSERIES | BLA PERFORMACE SERIES LITHIUM BATTERY 36V 100AMP BT XSERIES |
| Nominal Voltage | 25.6V | 38.4V |
| Nominal Capacity (25°C, 0.33C) | 100Ah | 100Ah |
| Terminal | M8 | M8 |
| Length (mm) | 485 ± 2mm | 500 ± 2mm |
| Width (mm) | 172 ± 2mm | 265 ± 2mm |
| Height (mm)/Terminal Height | 232/247 ± 2mm | 232/251 ± 2mm |
| Weight | 23.0kg | 37.5kg |
| Max Charge Voltage | 29.2 ± 0.1V | 43.8 ± 0.1V |
| Standby | 27.6 ± 0.1V | 41.4 ± 0.1V |
| Cutt off Voltage | 22V | 31.4V |
| Max. Discharge Current | 120A | 120A |
| Max. Pulse Discharge Current (3 Sec) | 500A | 500A |
| Max. Charge Current | 100A | 100A |
| Cycle Life (100% DoD) | ≥3000 | ≥3000 |
| Operating Temp - Charge | 0 - 60°C | 0 - 60°C |
| Operating Temp - Discharge | - 20 - 60°C | - 20 - 60°C |
| Short Circuit Release | Load Release | Load Release |
| Max. Series/Parallel Configuration* | 16P | 16P |
| Communication | Bluetooth and CAN/RS485 | Bluetooth and CAN/RS485 |
| Cerification | IEC62619 | IEC62619 |
| IP Rating | 67 | 67 |
Shipping Information:
| BLA Code | Shipping Weight kg | Shipping Length cm | Shipping Width cm | Shipping Height cm |
|---|---|---|---|---|
| 111210 | 24.20 | 49 | 27 | 25 |
| 111216 | 35.00 | 66 | 43 | 47 |
