$42.90 – $169.90

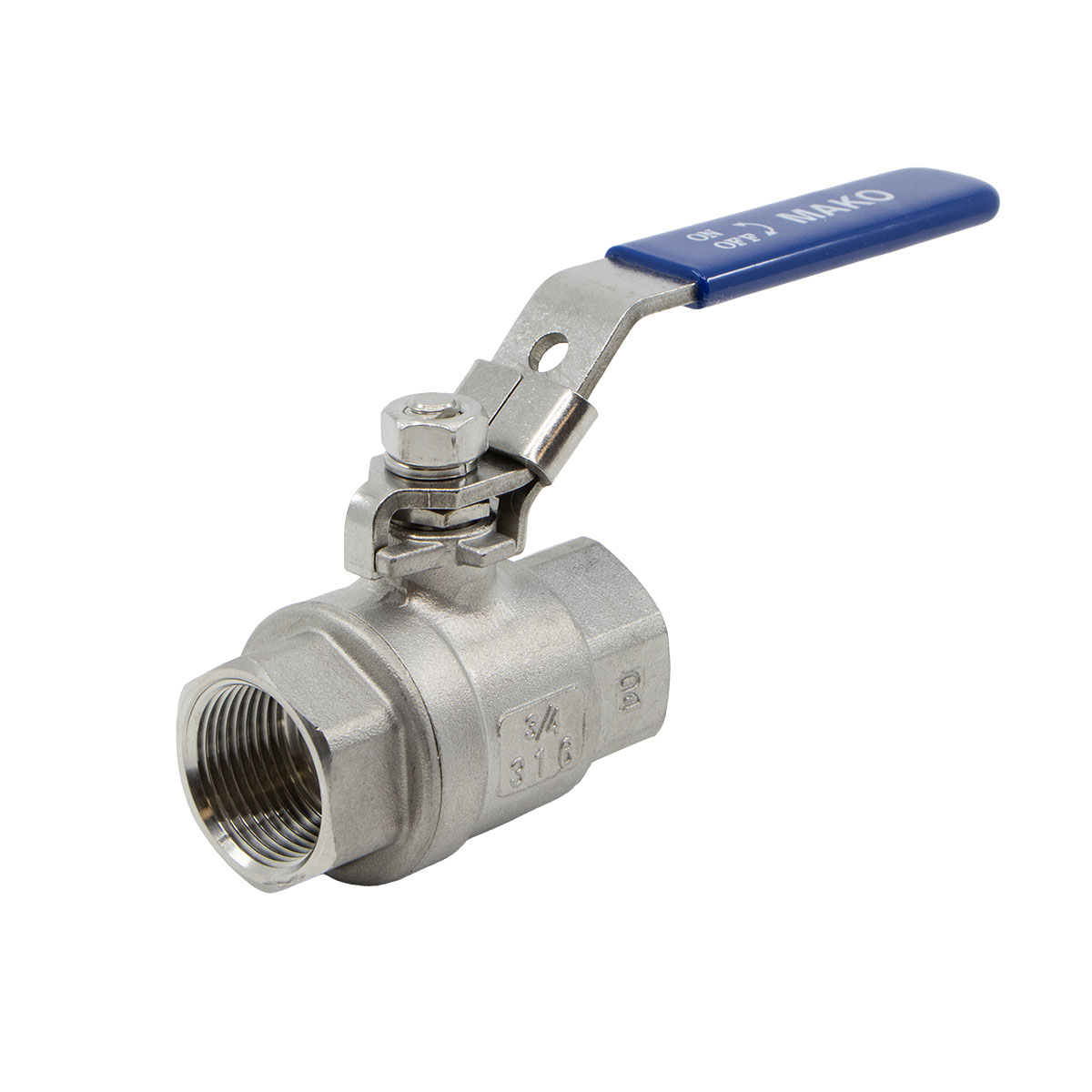

Brand:Cast 316 grade housing. Stainless steel ball, stem, handle, nut and spring washer. Two piece, full bore design with teflon seals for smooth operation. Suitable for survey. Slide gate on handle, locks in fully open or fully closed position.
BLA Code | Thread BSP | Length mm | Width mm | Height mm | Handle Radius mm |
---|---|---|---|---|---|
136900 | 1/2" | 62 | 32 | 70 | 105 |
136902 | 3/4" | 74 | 42 | 85 | 130 |
136904 | 1" | 86 | 50 | 105 | 145 |
136906 | 1 1/4" | 90 | 64 | 110 | 155 |
136908 | 1 1/2" | 120 | 74 | 130 | 190 |
