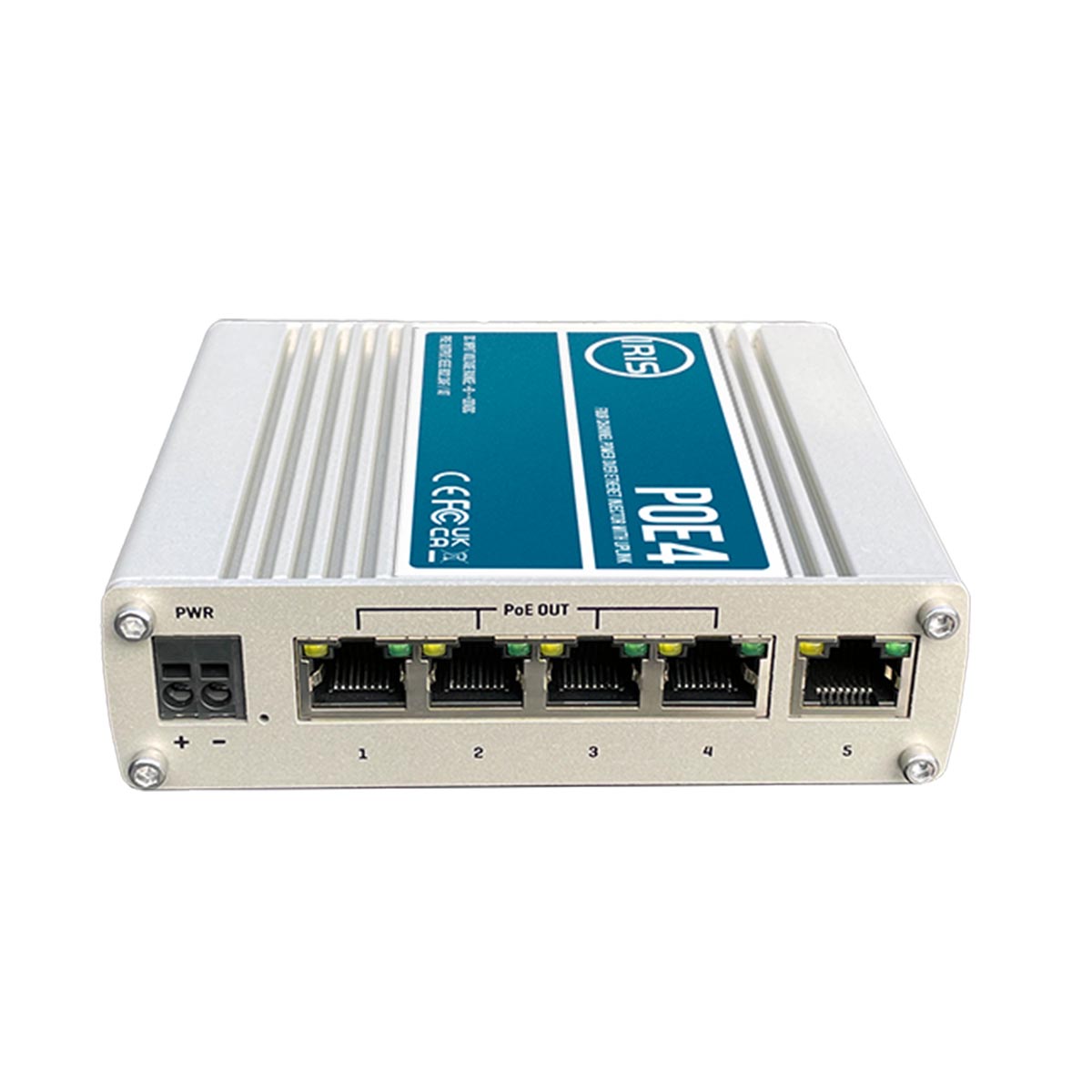

The new PoE4v2 from Iris Innovations is a four channel plus uplink Power over Ethernet switch which operates over a wide DC input volt- age range of 9~30VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.

The PoE4v2 outputs 48VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each or 1 device at 30W and a further 2 devices at 15W.

The unit features a passive uplink port to enable connection to other network switch equipment, routers or modems.
The PoE4v2 simplifies your install as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.

Supplied with panel mount fixing kit.

• Inject DC Power onto up to four devices across your Ethernet network
• Wide Voltage Range – 9~30VDC Input
• Delivers up to 48VDC
• IEEE802.3af / 3at (PoE+) Compliant
• Small Form Factor with moulded fixing points
• Dimensions: 150mm x 122mm x 32mm
• Up to 60W Max Power Budget
• Up to 30W per Channel
• Rugged Enclosure with Panel Mounting Brackets
• Provides Power to Devices up to 100m Cable Length
• Plug & Play Operation – No Configuration Required
• Perfect for Battery Powered Applications such as Boats & Vehicles
• Simplifies Installations
