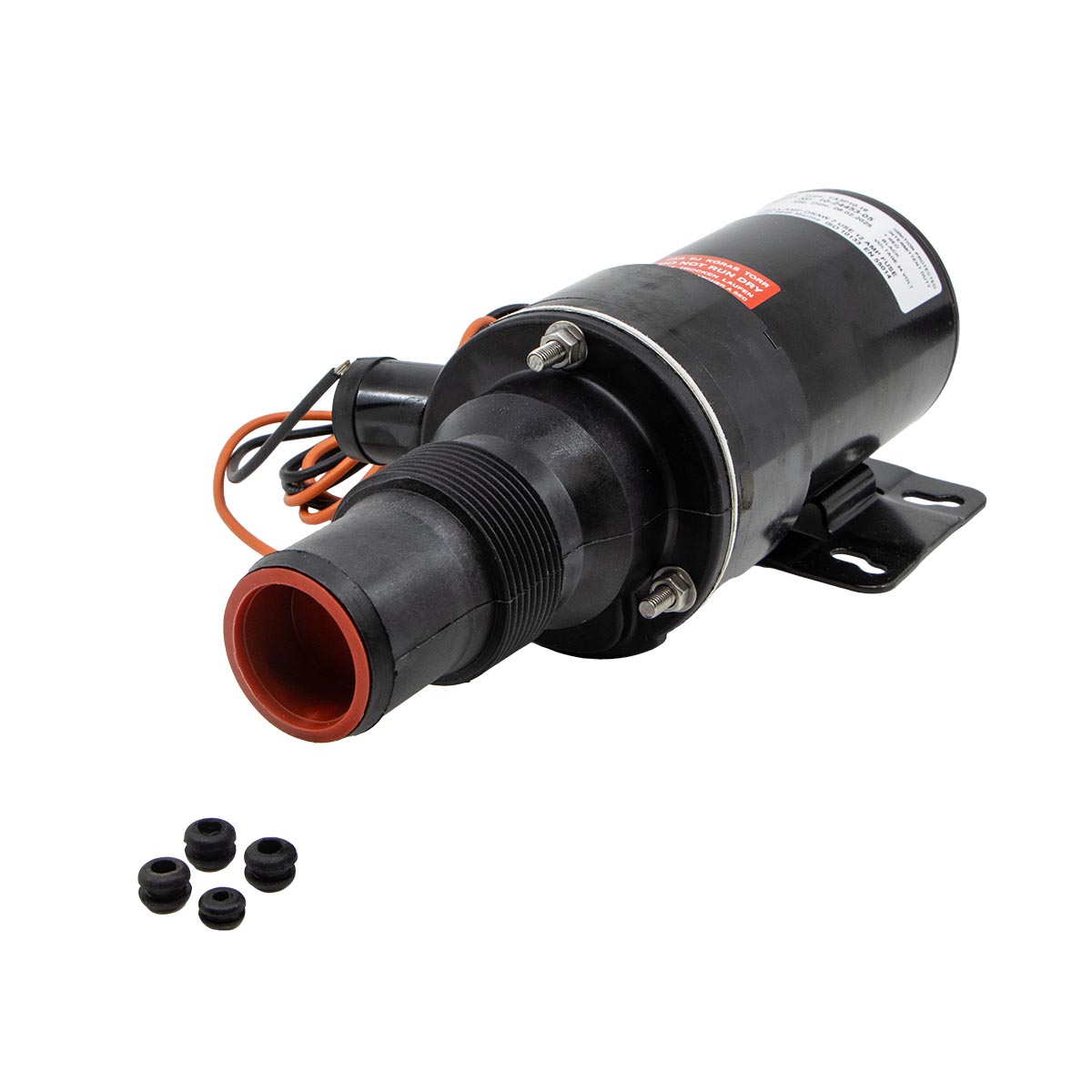

The TA3P10-19 macerator pump takes care of toilet waste. A rotary cutter shreds waste before it is pumped into or out from the holding tank. The pump should be connected as close as possible to the holding tank discharge outlet or the bowl discharge outlet.
Specifications
• Motor 12/24V DC (with built-in thermal protection)
• Body Phenol Plastic (PF)
• Impeller Nitrile
• Housing Thermoplastic Polyester (PET)
• Shaft Stainless Steel
• Seal Lip Seal
BLA Code | Volts | Capacityat 0.2 bar | Inlet Connection | Outlet Connection | Length mm | Width mm | Height mm | Weight kg |
---|---|---|---|---|---|---|---|---|
132214 | 12 | 37 L/min 2013 10 GPM | 100bd (dia 38 mm) hose or 100bd BSP | 1 (25.4 mm) hose | 230 | 108 | 82 | 1.9 |
132216 | 24 | 37 L/min 2013 10 GPM | 100bd (dia 38 mm) hose or 100bd BSP | 1 (25.4 mm) hose | 230 | 108 | 82 | 1.9 |
N.B. Use unbleached lavatory paper only.
